Choosing drip irrigation tape is a system-design decision, not simply a choice of roll length. Crop spacing, soil, outlet spacing, discharge, operating pressure, filtration and lateral length all affect how water is distributed. For commercial buyers, confirming these details before ordering helps avoid a specification that does not match the field layout.
This guide is for growers, irrigation installers, distributors and importers comparing drip tape for commercial crop rows. It explains what to confirm with the supplier and which details should come from the product specification rather than guesswork.
1. Start with the crop and row layout
Record the crop, planting pattern, row length, row spacing and area to be irrigated. Note the soil type and whether the field is level or sloped. These details help determine outlet spacing and how long each lateral can run while maintaining reasonably even water delivery.
Do not choose tape solely because outlet spacing matches the distance between plants. Soil texture, water movement through the soil and the crop's root zone also affect the wetting pattern. If the layout is new or soil conditions are uncertain, ask an irrigation designer or local agronomist to review the proposed arrangement.
2. Match outlet spacing to the planting pattern
Outlet spacing is the distance between the tape's water outlets. FARM GUARD's listed 16 mm drip irrigation tape range includes selected configurations at 10 cm, 15 cm, 20 cm and 30 cm spacing. Not every spacing is available with every roll length, wall thickness or outlet style.
- Planting pattern: compare outlet spacing with crop positions along the row.
- Soil: consider how quickly water spreads sideways and downward in the field soil.
- System capacity: more outlets per metre can change total flow demand. Check available flow and pressure before finalising the layout.
The University of Minnesota Extension guide to irrigation set-ups for specialty crops identifies crop spacing, tape thickness, outlet spacing and diameter as important selection factors. Its examples are regional guidance, not a substitute for designing to your own crop, soil and water supply.
3. Confirm outlet style and rated discharge
The current FARM GUARD listing includes supplier-labelled single-outlet and double-outlet configurations, plus one unperforated 1,000 m option with no preset outlets. Confirm exactly what the selected outlet style means for the product you are ordering. Do not assume the label alone tells you the discharge rate, the number of crop rows served or the operating pressure.
Before purchase, ask for the rated discharge per outlet and the recommended operating-pressure range for the exact configuration. If a technical data sheet is available, use that value in the irrigation design rather than estimating flow from spacing or appearance.
4. Compare wall thickness and roll length together
The listed 16 mm range includes 1,000 m and 2,000 m rolls in a 0.20 mm wall option, and 1,500 m rolls in a 0.30 mm wall option. These are specific combinations; not every length, wall thickness and outlet pattern is available in every combination.
Choose roll length based on the field plan, number of laterals, irrigation-zone layout and how much joining or cutting the installation requires. When comparing wall thickness, confirm the intended application, handling requirements and supplier guidance for pressure and reuse. Wall thickness by itself does not guarantee a particular service life.
The current product specification lists both PE and PP across variants. If material type is important for your project, confirm the exact material for the selected variant in writing before ordering.
5. Check pressure, flow and lateral length before ordering
Operating pressure and flow must suit both the selected tape and the complete irrigation system. Appropriate values depend on the exact product, lateral length, outlet spacing, elevation changes and water supply. There is no single pressure or maximum row length that can safely be applied to every configuration.
Ask the supplier or irrigation designer to confirm:
- the recommended inlet-pressure range for the exact tape;
- rated discharge per outlet and the basis on which it was measured;
- the proposed lateral length and any elevation change;
- how many laterals will run at the same time; and
- whether pressure regulation or zoning is needed for the planned layout.
Utah State University Extension's drip-tape irrigation guide explains why pressure, flow, spacing, line length and elevation should be considered together. Its numerical examples apply to the products and conditions discussed in that guide; do not transfer them to another tape without checking its own specification.
6. Plan filtration and routine maintenance
Small outlets can become restricted by suspended particles or deposits in the water. Select filtration based on water quality and the emitter manufacturer's requirements, and plan access for cleaning. Do not guess the required filter grade from the tape's nominal diameter alone.
During commissioning and routine operation, inspect for leaks, blocked outlets and uneven delivery. Follow the supplier's instructions for flushing the main line and laterals, cleaning filters and handling the tape at the end of a crop cycle. If water quality is variable, include it in the design discussion before choosing the product.
For more background, see Utah State University Extension's guidance on maintaining irrigation application uniformity, which discusses pressure variation, outlet spacing, clogging and system maintenance.
7. When should you compare drip tape with micro-spray hose?
Drip tape and micro-spray hose are not interchangeable product names. Drip tape delivers water through its specified outlets along a crop row. A micro-spray hose uses a different outlet pattern and may be considered when the project calls for a different localised spray or wetting arrangement. The right choice depends on the crop, layout, water supply and required wetting pattern.
FARM GUARD also lists PE micro-spray irrigation hose in selected 20–75 mm nominal diameters and 100–200 m roll formats, with supplier-labelled hole-pattern options. Confirm the selected diameter, wall specification, hole pattern, pressure and intended installation before comparing it with drip tape.
FARM GUARD drip irrigation tape options

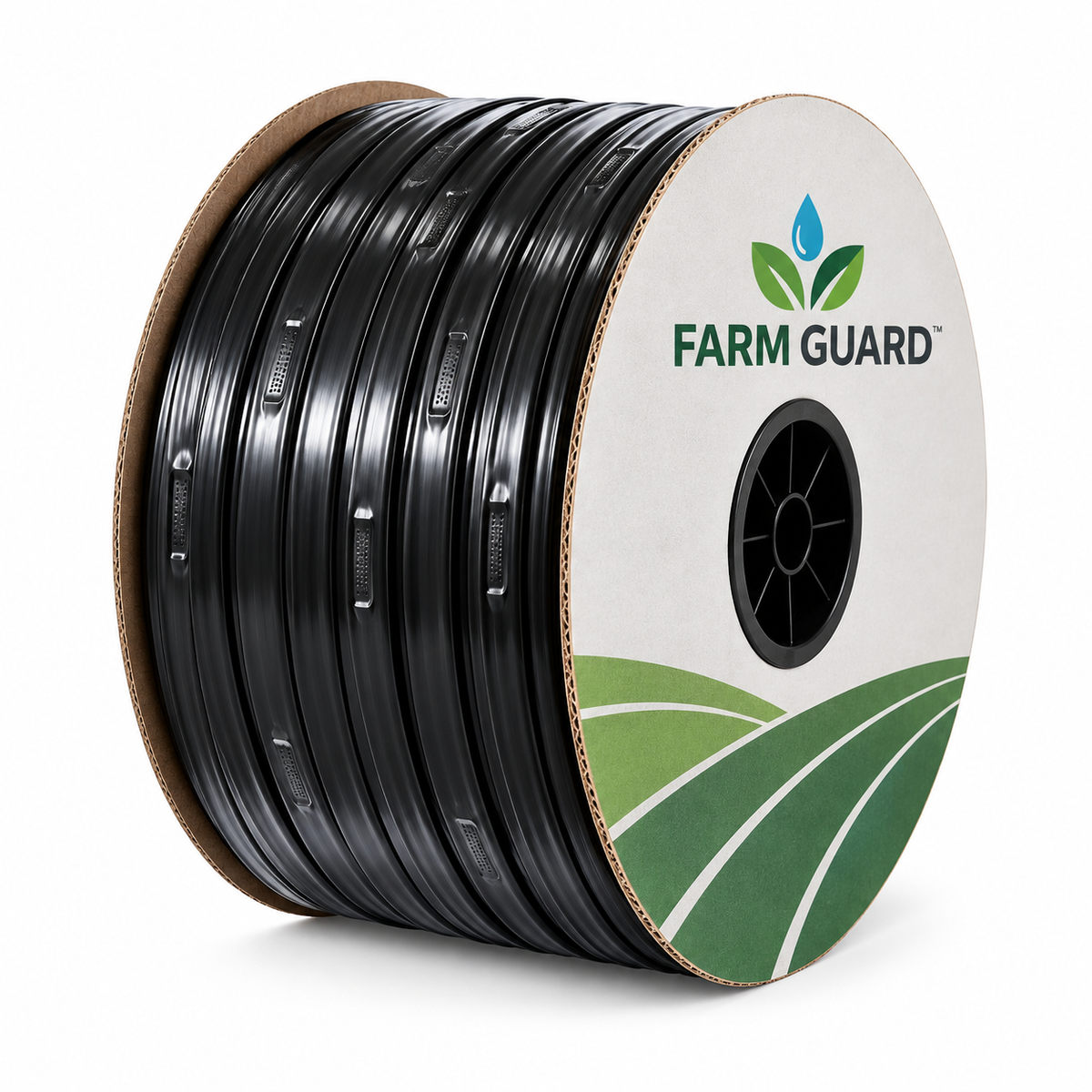

The current 16 mm drip irrigation tape range lists 1,000 m, 1,500 m and 2,000 m roll formats across specific wall-thickness and outlet combinations, with selected 10 cm, 15 cm, 20 cm and 30 cm spacing options. One listed 1,000 m variant is unperforated and has no preset outlet spacing. Check the product page for the current variant-level details.
To compare an alternative format, see PE micro-spray irrigation hose.
B2B buyer checklist before requesting a quotation
- Crop and intended application
- Row length, row spacing and planting spacing
- Soil type and whether the site is level or sloped
- Required tape diameter, wall thickness and roll length
- Outlet style, spacing and confirmed rated discharge
- Available water source, pressure and flow, if known
- Filtration and connection requirements
- Quantity, destination country and delivery postcode or port
If some technical details are not yet known, share the crop, field layout, required quantity and destination first. Operating values should be confirmed before the final specification is agreed.
Request a specification-based quote
Review the 16 mm drip irrigation tape specifications or send your requirements through the FARM GUARD wholesale enquiry page. Include the required roll format, outlet configuration, quantity and destination, together with any system-design requirements already confirmed by your irrigation specialist.
